Was there a safe way to go - um, undercover? I asked Adam upfront so I'd observe proper protocol and prevent damaging anything. "The aluminum alloy boxes shielding the filtering modules are mounted from the bottom. I'll send you two photos containing usually closed inner filtering and surge elements."

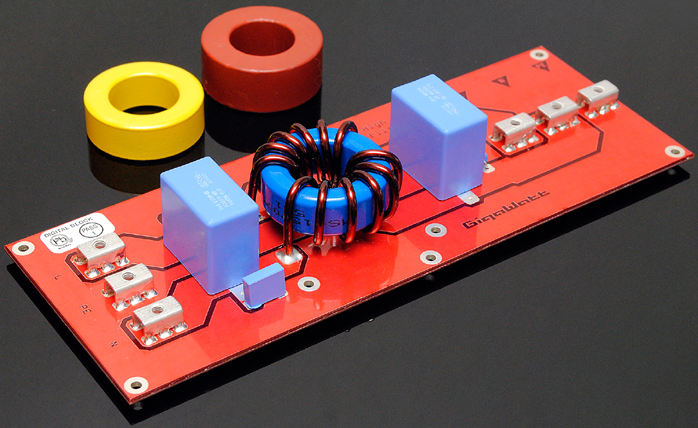

Here is the
digital filter module with nano crystal core. Cores for analog and high-current modules show in background.

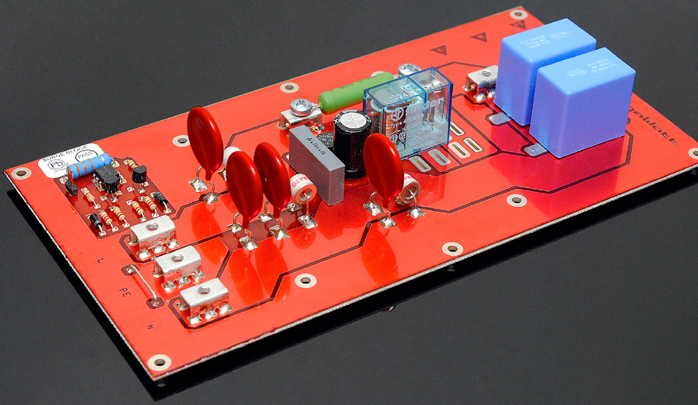

Here is the surge module.

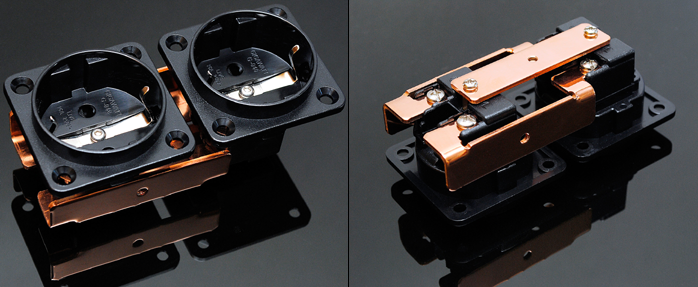

Here is a
EU Schuko version of the US-style receptacle with the same style of massive copper rails.
The Special Edition conditioner under review of course upgrades its receptacles to the silver-clad rails as shown next.

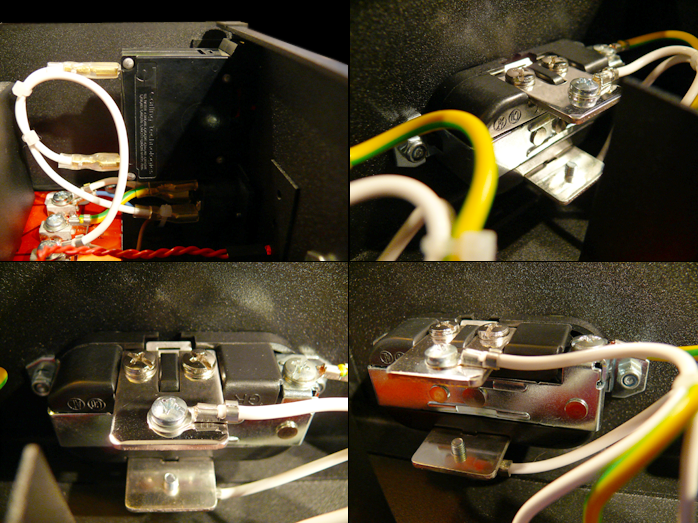

The custom-spec'd Carling magnetic circuit breaker showed in the upper left whilst three different views of the US-style SE duplex followed.

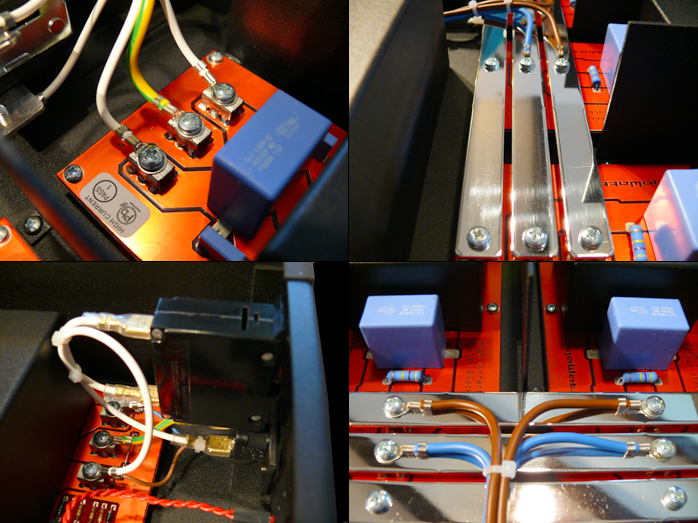

High-current bolted terminations abound. This is how you expect a high-quality power distribution component to be put together.
